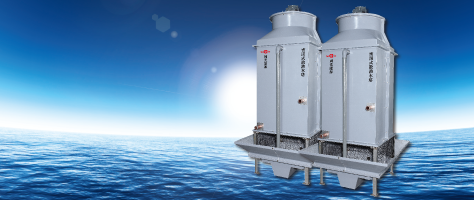

◎Solasia cooling tower heat exchanger provides high efficiency in heat exchanging. The thread inside the pipe can prevent the generation of limescale to make the device have stable and high efficiency output. The hot water higher than 32℃ in industry processing can be processed/cooled by this system without pre-cooling by other cooling system. It provides a low cost, high efficiency production.

◎Applications : Plastic injection, plastic injection cooler, plating liquid cooling, high frequency induction heating processing heat radiator, large air compressor heat radiator, air conditioner cool water machine etc.

＊Consider to install water cooler if the precision temperature is required or the cold water need to be lower than 30℃.

Model

Thermal Duty

Dimension(m/m)

Motor

Fan

Pump

Cooling capacity Kcal/h

Width

Height

HP

Dφ(mm)

HP

SAC-25

78000 Kcal/h

1445

2880

1

700

1

SAC-15

39000 Kcal/h

1165

1775

1/4

600

1/2

1. Increases cooling performance

Closed copper tube design. Effectively resolve thermal conductivity problem caused from scale formation to stabilize cooling performance.

2. Increases manufacturing efficiency

No equipment closed time is required because of clean cooling water, so the loss of equiment down time is minimized.

3. Reduce management & maintenance cost

No need to maintain heat interchanger of all manufacturing equipments. Only need to care the cooling tower cleaning.

A remarkable amount of maintenance costs are saved.

4. Energy cost saving

Utilize the natural thermal dissipation by atmosphere to minimize the operation of chiller and save power costs.
